LCD Direct Drive Circuit

« Multiplexed Liquid Crystal Displays Application notes Sample Multiplex Drive Circuit »

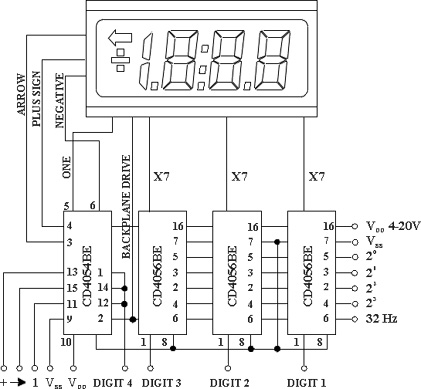

The example circuit below shows a typical application of direct drive decoder/driver ICs for numeric displays.

Required signals are 4 bits of BCD data, digit strobe, annunciator bits and square-wave display drive - the 32 HZ input shown on the drawing. The circuit is expandable for displays with more digits or annunciators.

See the IC Link Page for information on obtaining this or many other IC's for direct driving LCD's. Our Applications Note Direct Driving an LCD has additional basic direct drive information.
